Condition: Brand new
Warranty: 5 Years
| · Complies with ATX12 v2.52 & EPS12 V2.92 |
| · Efficiency = 88% @ typical Load |
| · Active PFC = 0.9 |
| · Hold up time > 17ms @ 80% Load |
| · +5V & 3.3V DC to DC module design |
Hydro PRO 800W – 80 Plus 230V EU Bronze Certification
This power supply supports +12V Single-Rail Design, has a 120mm Silent & long life Fan, and has complete protections: OCP/OVP/OPP/SCP. HYDRO PRO series, 80 PLUS 230V EU bronze certified, saves energy through its high efficiency of up to 85% and excesses the standard through its high efficiency of up to 88%.
Intelligent Fan Speed Control
An advanced fan control designed to detect heat adjusts fan speed for optimal cooling performance and protects valuable components during maximum heat stress.
Optimal Cooling

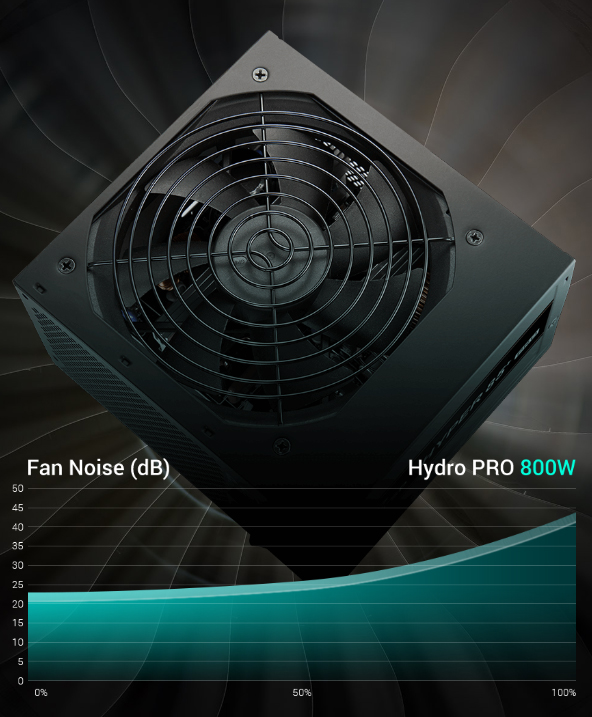

HYDRO PRO series is quieter at idle, and the 120mm fan reduces noise even when pushing your system hard.
DC-to-DC Module Design
With a 12V SR circuit and the DC to DC structure, the HYDRO PRO series ensure outstanding conversion efficiency and provides stable output voltage.
450V 105C, Heavy-duty capacitor
The bulk capacitor supports working in extremely harsh environments, such as high temperatures and peak voltage fluctuations. It stabilizes the performance for high reliability that your system can count on.
All Black Coating and Cables

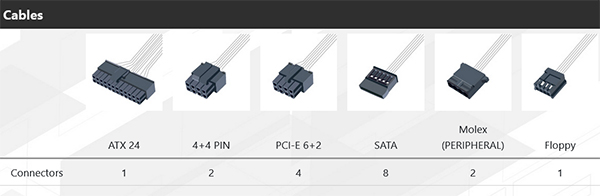

The black mat coating and flat cables give your system a superior look and straightforward, unlike many entry-level power supplies.
Energy Related ErP/Eup 2013
Green Power! The total AC power consumption of the completed system is less than 5Vsb rail to support the new EU Regulation ErP 2013 for modern-day systems.

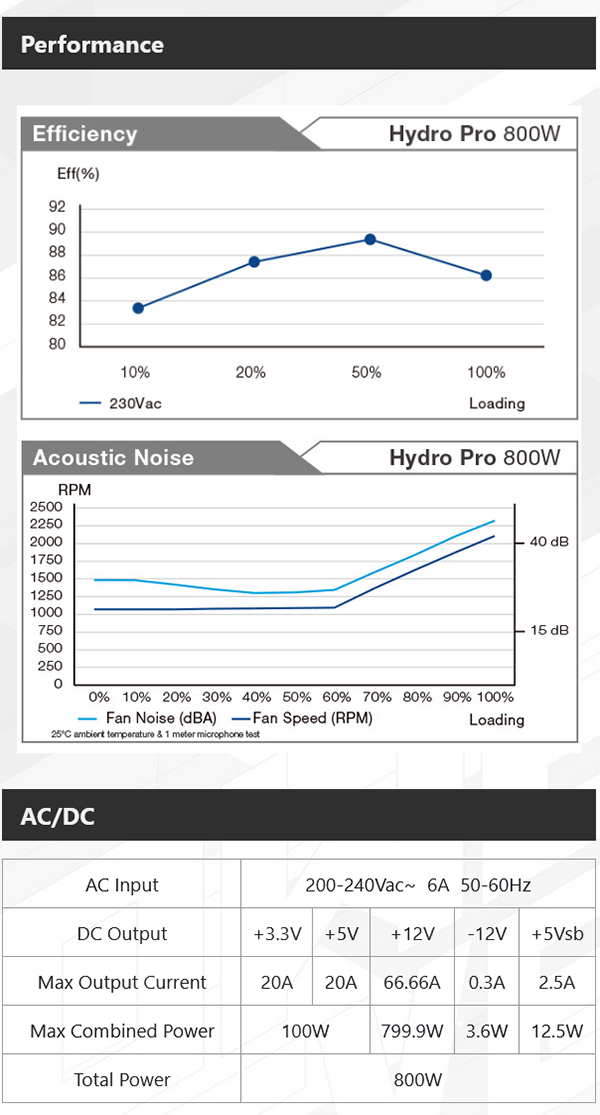

Specifications
| Model | HP2-800 |
|---|---|
| Rated Output Power | 800W |
| Form Factor | ATX |
| 80 PLUS Certification | Bronze 230V EU |
| Input Voltage | 200V-240V |
| Input Current | 4.5A |
| Input Frequency | 50-60Hz |
| PFC | Active |
| Efficiency | ≥ 88% |
| Fan Type | Sleeve Fan |
| Dimensions(L x W x H) | 150 x 140 x 86 mm |
| Weight | 1.472kg |
| Protection | OCP/OVP/OPP/SCP |
